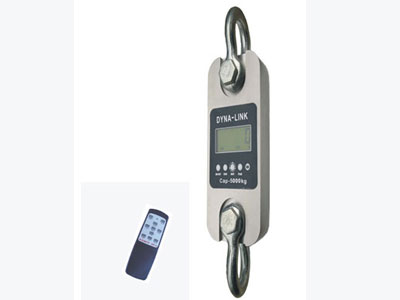

DL-R

Product Name：DL-R
Views：
More pictures：
   Product details



Product details:
Feature:
◆Rugged construction.
◆Accuracy: 0.05% of capacity.
◆All fuctions and units are clearly display on the LCD (with backlighting).
◆Digits are 1 inch high for easy distant viewing.
◆Two user programmable Set-Point can be used for safety and warning applications or for limit weighing.
◆Long battery life on 3 standard “LR6(AA)”size alkaline batteries.
◆All commonly used internationally recognized units are available : kilograms(kg), short Tons(t) pounds(lb), Newton and kilonewton(kN).
◆Infrared Remote control easier to calibration(with password).
◆Infrared Remote control with many fuctions : “ZERO”, ”TARE”,”CLEAR”, “PEAK”, ”ACCUMULATE” ,”HOLD” ,”Unit Change” ,”Voltage Check” and “Power OFF”.
◆4 local mechanical keys  u:”ON/OFF”,”ZERO”,”PEAK” and ”Unit Change”.
◆low battery warning .


Main technical data

Standard
JB/T5669
Display
25mm (1’’) 5digits LCD
Power on zero range
20% F.S.
Manual Zero Range
4% F.S.
Tare Range
20% F.S.
Stable Time
≤10seconds
Overload Indication
100% F.S. + 9e[U1]
Max. Safety Load
125% F.S.
Ultimate Load
400% F.S.
Battery Life
≥100 hours
Battery Type
“LR6(AA)”size alkaline batteries. 1.5Vⅹ3
Operating Temp
- 10℃ ~ + 40℃
Operating Humidity
≤85% RH under 20℃
Remote Controller Distance
Min. 15m
Battery of Remote Controller
7AAA battery, 1.5V×2




MODEL
Max. capacity(kg)
Min. weigh(kg)
Division(kg)
Total dispay counts (n)
DL-R-01
1000
10
0.5
2000
DL-R-02
2000
20
1
2000
DL-R-03
3000
20
1
3000
DL-R-05
5000
40
2
3000
DL-R-10
10000
100
5
2000
DL-R-20
20000
200
10
2000
DL-R-30
30000
200
10
3000
DL-R-50
50000
400
20
2500
DL-R-100
100000
1000
50
2000
DL-R-200
200000
2000
100
2000
