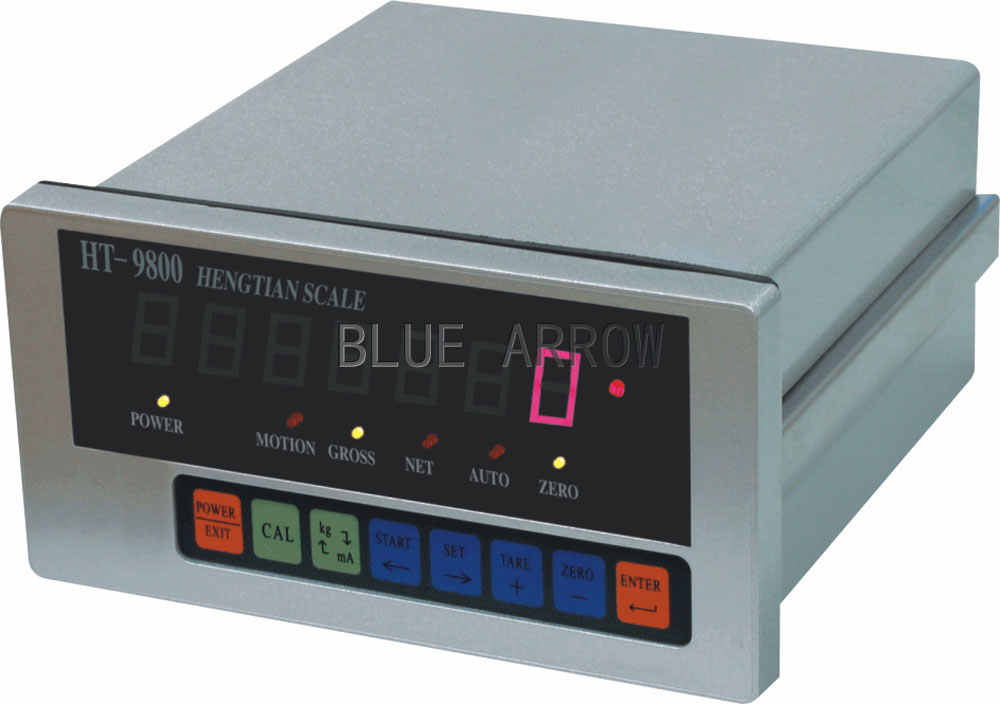

Name：9800-Display controller(Control type
Model：Display controller(Control type)
Blueprint：Look over>>
Detail：
Analog part
Capacity:0~50mV
A/D transform:100 per sec.
Input sensitivity：≥0.35μV/d
Nonlinear：≤0.01%F.S
Thermal Zero Drift：≤0.1μV
Full range temperature coefficient：5PPm/℃
Load cell power : DC 8V，eight 350Ωinputs.
·Digital part
Display:7 digit super bright LED display
Instructions: six red LED indicator
Key:8 function keys
Indexing number shown：≤50000
Division value shown:1/2/5/10/20/50 selected
Decimal point.:0\0.0\0.00\0.000\0.0000 selected
Interface:
Load cell interface
RS232C/RS422 communication interface
Analog signal output terface: （4～20mA）
Relay signal output terface: K1，K2，K3
·Power
Input: AC187～242V，49～51Hz
Power：≤10VA
·Others
Working temperature and Humidity: ：0～40℃,＜85%RH
Size(mm):210×108×207 (W×H×D)
Weight::2.8kg |
