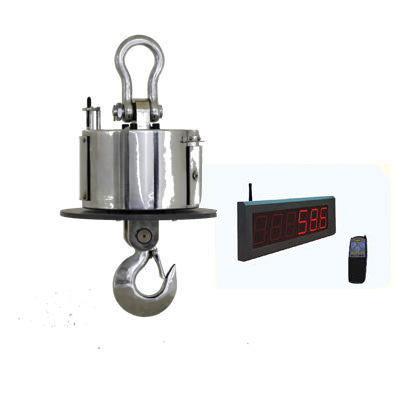

Product Name：OCS-SZ-HBC

Model：OCS-SZ-HBC

Range：2t.3t.5t.10t.15t.20t.30t.50t

Drawings：Click to view>>

Details：All steel shell,impact-resistant,anti-electromagnetic interference

·The tailor made hot state crane scale, in order to ensure that the special sensor under the environment of high temperature can achieve good accuracy.

·The heat insulation board, help block heat source radiation：

2 ~ 10 tons of condole high temperature heat insulation board scale size is 400 mm, board heavy 4.8 kg

20 ~ 30 tons of condole high temperature heat insulation board size scale for 500 mm, board heavy 7.2 kg

 50 tons of condole high temperature heat insulation board scale size is 600 mm, board heavy 9.8 kg

·Scale heat protection board in the body, and to add further block the penetration of the heat source

·Close the negative scale function, to the requirements of the constant casting particularly appropriate occasion

·Other functions and parameters as shown in the OCS-SZ-BC series wireless remote preach crane scale

·This series of products are mainly used in metallurgical industry

Attention：
       Every job in the high temperature environment, we must ensure that the crane scale scale body hook the underside and suspended heat source is more than 1600 mm, lifted space objects shall not exceed 1800 ℃ temperature highest.
