Product Description:

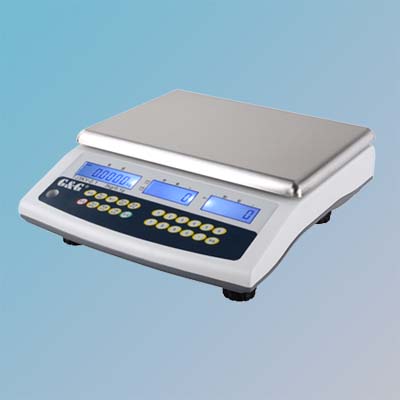

TJ-Y series of electronic counting scales are widely used in the same time requires precision weighing and counting applications,the performance of the instrument itself with a series of excellent data set,alarm will be convenient and practical functions to meet the user to maximize the variety of application requirements.
Internal rechargeable battery configuration,make the instrument more than 100 hours of continuous work.Standard RS232 bi-directional communication interface,can not only connect the printer and computer,data collection and statistics,and computer interface can also be real-time control of balance.
Product description form· 2 kinds of weighing units: kg aluminum base, rugged
·The skin of the weighing, automatic calibration ·Stainless steel and plastic double scale Pan·
Bring their own battery, ac/dc amphibious ·3 15 mm special LCD monitor with white backlit
·RS232 interface, there are printed buttons ·22 digital and function keys
·Number of assumptions, alarm function But locking level to adjust a foot·Accumulate and storage function
|
model
|
TJ3KY-0.1
|
TJ6KY-0.1
|
TJ15KY-0.5
|
TJ30KY-1
|
|
maximum capacity
|
3kg
|
6kg
|
15kg
|
30kg
|
|
resolution ratio（d）
|
0.1g
|
0.1g
|
0.5g
|
1g
|
verification scale interval
（e）
|
10d
|
10d
|
10d
|
10d
|
|
To skin range
|
0~3kg
|
0~6kg
|
0~15kg
|
0~30kg
|
|
|
2kg
|
5kg
|
10kg
|
20kg
|
|
Says a size
|
300×220 mm
|
|
|
330（length）× 300（wide）× 100（high）mm
|
|
power supply
|
AV-adaptor
input
AC220V±10% 50Hz±1Hz
output
DC12V/600mA
or
rechargeable batteries
DC6V/4AH/20HR
|
|
|
0~40℃
|
|
|
≤80% RH
|
|
|
RS232
|
|
