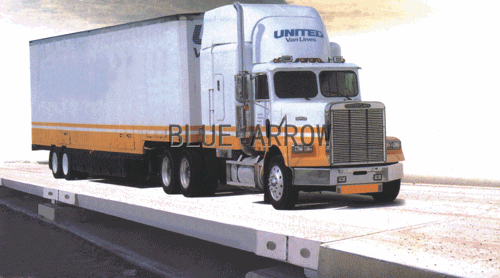

SCS series electronic truck scale for weighing vehicles on various occasions of measurement.Mainly by the scale body,the load cell,weighing indicator of three main parts.The product is designed for thin body scale multi-unit structure,form the basis for the non-pit,low platform.Easy installation,low maintenance,fast and accurate weighing,stable and reliable.Widely used in electric power, metallurgy,mining,ports and other industrial and mining enterprises of various types of vehicles and similar vehicles weighing measurement.It not only improves access to industrial and mining goods trade settlement efficiency,but also in-depth monitoring of the production process applied to the integrated data systems and business management,weight management to meet modern requirements.
My company can provide various specifications of automatic weighing systems,from manual operation of the software / hardware to secure automated weighing system.Weighing Management System software is written in the Windows environment software man-machine dialogue,simple,friendly interface,high availability,allows companies to get rid of a series of tedious work,greatly improved work efficiency and error-free.
Automatic Weighing Management System hardware consists of weighing instruments (with communication interface),micro-computers, printers,and the ATIS system required an optional remote data terminals,remote printer paper,vehicle location detector,traffic lights, etc.composition.
Micro-computer system has been identified from the license plate number,vehicle information,and display the weight of the weighing instrument for classification,preservation,according to the need to print or remote,thus completing the automatic weighing work.Software menu screen are:the main load screen,the system settings screen,transport vehicles,screen,screen,query management, reports and other man-machine screen interface to it,easy to use.The main screen can display vehicles weighing weight,weighing time, material type,vehicle information and other relevant information.
Technical parameters:
*Accuracy:National Standard Grade Ⅲ
·U-section design,scale units and local rigidity of the overall rigidity is improved
Modular,standardized,serialized weighing platform,multi-unit combination
* Weighing platform cavity sealed,rust,scale units without permanent deformation,weld without cracking phenomenon
* With automatic reset of the power transmission sector
* Weighing instruments with digital filtering,automatic zero tracking.Display gross weight,net weight,tare weight,etc.
* Number,tare memory,sub-total,total cumulative
* Data output/automatic print
* Fault diagnosis
* Operating temperature:weighing instruments(-10~ 40℃);scale body(-40~ 70℃)
Relative temperature:not more than 90% RH
* Supply Voltage: AC 220V50HZ(-15% ~ +10%) |
