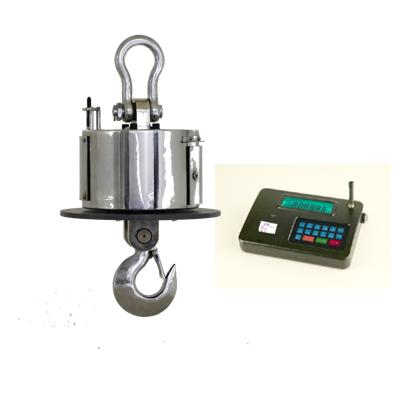

Product Name：OCS-SZ-HBC


Model：OCS-SZ-HBC

Range：2t.3t.5t.10t.15t.20t.30t.50t

Product Drawings: Click to view>>

Details：

For metallurgy,foundry industry,tailor-made for high-temperature environment Hanging

* The use of tailor-made thermal Hanging special sensors to ensure that at high temperatures can get better accuracy.

* Installation of high temperature insulation panels,effectively blocking heat radiation:

2 to 10 tons crane scale high-temperature insulation board size of 400mm,4.8kg weight plates
20 to 30 tons crane scale high-temperature insulation board size of 500mm,7.2kg weight plates
50 t crane scale high-temperature insulation panels size 600mm,9.8kg weight plates

* Balance the body added insulation protection board,further blocking the penetration of heat

* Intimate scale of the negative features of the quantitative requirements of the occasion is particularly suitable casting

* Other functions and parameters described in OCS-SZ-BC family-style hanging scale wireless telemetry

* The products are mainly used in metallurgical industry

Note：
       Who work in high temperature environment crane scale,scale body must ensure that the bottom hook was hanging with the heat source spacing is greater than 1600mm,lifting objects,shall not exceed the maximum temperature of 1800 ℃.
