Description

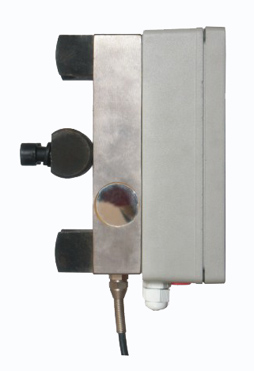

QZX-P-type side-pressure limiter is mainly used for electric hoist,wire rope cranes and other lifting equipment directly,by direct pressure in the fixed end of the rope or balance due to the lower pulley side pressure sensors and control instrumentation components. When overloaded,the control instrument audible alarm,and cut off the lifting loop.Lateral pressure theory using the rope,easy installation,the optional instrument and the land was no small-screen display shows two forms.
Order model ,for example：QZX- P – 2 - 5t / φ16 - DX
steel rope rate, tonnage steel rope diameter φ small screen
QZX-P type side-pressure limiter standard size
|
model
|
QZX-P-1
|
QZX-P-2
|
QZX-P-3
|
QZX-P-5
|
QZX-P-10
|
|
Single rope tension
|
1t
|
2t
|
3t
|
5t
|
10t
|
|
Rope diameter
|
φ6～14
|
φ10～18
|
φ12～20
|
φ16～26
|
φ24～36
|
|
L
|
180
|
180
|
180
|
200
|
260
|
|
H
|
95
|
95
|
95
|
110
|
110
|
|
B
|
60
|
60
|
60
|
60
|
60
|
