Product details

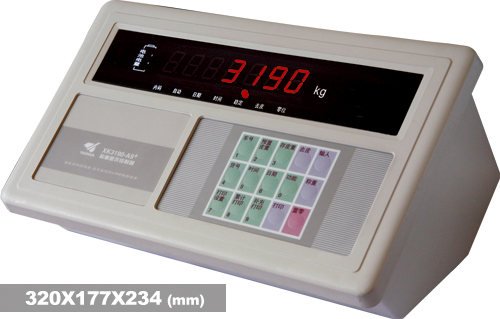

XK3190-A9 + instruments using high-precisionΣ-△ADC technology can be widely applied in electronic platform scale,electronic floor scale,electronic truck scale and other static weighing system.
Basic functions
DC,standard battery;
7 0.8 in.LED display,battery level indicator 3 files;
Zero tracking range,zero(power/manual)range can be set up;
With two linear correction,the two calibration methods of compensation;
Storage capacity,can store 1001 group weighing record,license plate number and tare weight group 1000,No.201;
Printable horizontal line and vertical load such as a single joint,you can print a variety of statistical reports;
With RS232 communication port(optional RS422/RS485),ring the big screen with the current communication port,equipped with the standard parallel printer port,support the specified models of thermal micro-printers;
A9 + P built-in micro-needle play;
Technical parameters
Conversion principle:Δ-Σtype A/D
Input signal range:-16 mV~18 mV
Conversion speed:10 times/sec.
A/D converter resolution code:1 million yards
Bridge power supply:DC,5V,can be connected to eight 350Ω 16 700Ω sensor or sensors
Sensor connections:6-wire,long-term automatic compensation
Graduation: |
