Product details

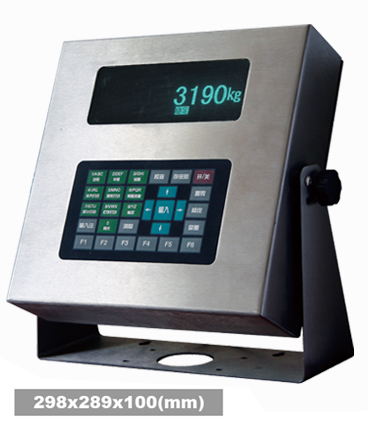

XK3190-DS2 Chinese character display 32-bit high-speed high-performance instrument based on ARM embedded system platform,with easy phonetic input and user-friendly interface,suitable for the use of a digital sensor to 16 static weighing system.
Basic functions
Digital sensors can be connected (eg,HBM)
Auto/manual angle difference correction
Calls within the code shows that the amount of weight an alternative sense of observation and analysis of tolerance
Password management and regular shutdown
Automatic/manual,day reporting/classification statistics report printing settings
Fast-filling weighing single print feature set
Weighing record store/check/delete/power protection
With RS232/422/485 communication ports
Current loop with a large screen communication port
Equipped with a standard parallel printer port
Can display in English,print a variety of goods,the license plate number and company name
English 1000 can be stored in the vehicle group grades and tare,1000 in the English group of goods,1000 group weighing record,record 50 groups overload
Technical parameters
Then 1 to 16 digital sensor.
Digital sensor interface:RS485 Interface
Digital sensor power supply:DC 11.3V/360mA,can be connected to 16 digital sensor
Display:7 VFD,7-state indicator
AC Power:AC 220V(-15% ~ +10%)50Hz (± 2%)
|
